Hello 👋

My name is Keith Cirkel

And I am bad at CSS

👈

👆

👈

To be bad at CSS, you must first understand CSS.

You have to know where the bodies are buried.

You too, can be bad at CSS!


            div {

              width: var(--width, 10px);

            }

🚨 Parsing theory tangent! 🚨

Raw Text


            h2 { width: var(--width,10px) }

Tokenization

h2
{
width
:
var(
--width
,
10px
)
}

Tokenization

h2
{
width
:
var(
--width
,
10px
)
}

AST "Component Values"

h2
1. {
2. width
3. :
5. 1. var(
  2. --width
  3. ,
  4. 10px
  5. )
6. }

HIR (Higher-Order Intermediate Representation)

1. h2
1. {
2. 1. width
  2. :
  4. 1. var(
    2. --width
    3. ,
    4. 10px
    5. )
3. }

CSS Syntax 3

<ident-token>

❌4px
✅px4
❌-4px
✅-four-px
❌-4-px
--4px
❌⁃⁃foo
-⁸px
❌--⁂⁂⁂
-̶̡̰̤̰̣̫̗̻̦̘͔̺̪̰̙͕̋͗̈́͗ͅ-̷̢̫̜̻͚̩̭̫̔̋̎̑͜͠z̴̧͓̪̱͈̯̗̣̖̪̼̣̱͇͓͑̓̒̽ả̴̛͓̻̖̾̑̐͂̾̈́̋͂̒̐̆̈́̄̕l̸̨̧̢͇͍̦̱͉̖̮̫̳͕̖̖̝̽̒̇͒͗́͋͐͝͝g̴̳̻̼̳̭͉͔͖͖̜̼̻̳̹͍̈́̈́̅͗̈́͋̽̀̅̑̚͜͜o̸̯̭̖̫̦̭̬̲̞̳̗̗̫͔̍͗͛̒͊͋̒̄̓̓̇̈́̈̐̚̕
❌p x
\000070 \000078

CSS escaping rules means all of these parse the same

```
h3 { color: red }
```
```
\h3 { color: red }
```
```
\68 3 { color: red }
```
```
\68 3 { color: red }
```
```
\68 \33 { color: red }
```
```
\000068 \000033 { color: red }
```

<number-token>

❌four
✅4
❌4/2
✅-2.0
❌2.8.3
✅2e4
❌2e4e5
+2.0000e+0002

CSS escaping rules means all of these parse the same

```
h2 { width: 200px }
```
```
h2 { width: 200.000000000px }
```
```
h2 { width: 2e2px }
```

h2 { width: +000000000000002e+00000000000002px }

h2 { width: +000000000000002e+00000000000002\000070 \000078 }

h2 { width: +000.00020e+000000006\000070 \000078 }

👐🏻 Demo Time! 👐🏻


            npx csskit@latest expand --escape-idents -c "h2{width:200px;}"


              h2{width:200px;}

...becomes...


              \000068 \000032 {
                \000077 \000069 \000064 \000074 \000068
                :+2.00000000000000e+0000000002\000070 \000078 ;
              }

Demo page:


              data:text/html,<h2 style="border:solid">Hello NN1</h2><style>\000068 \000032 { \000077 \000069 \000064 \000074 \000068 :+2.00000000000000e+0000000002\000070 \000078 ; }

❝But Keith that's stupid, I'm never going to use it❞

You, probably


            <label class="block">
              <span class="after:content-['*'] after:ml-0.5 after:text-red-500 block text-sm font-medium text-slate-700">
                Email
              </span>
              <input type="email" name="email" class="mt-1 px-3 py-2 bg-white border shadow-sm border-slate-300 placeholder-slate-400 focus:outline-none focus:border-sky-500 focus:ring-sky-500 block w-full rounded-md sm:text-sm focus:ring-1" placeholder="you@example.com" />
            </label>


            .after\:content-\[\'\*\'\]::after {
              --tw-content:"*";
              content:var(--tw-content)
            }
            .after\:ml-0\.5::after {
              margin-left: .125rem;
            }
            .after\:text-red-500 {
              color: rgb(239 68 68 / var(--tw-text-opacity, 1));
            }

But, okay, let's ignore characters, focus on tokens

AST "Component Values"

div
1. {
2. width
3. :
5. 1. var(
  2. --width
  3. ,
  4. 10px
  5. )
6. }

--white
:
2. 1. rgba(
  2. 255
  4. 255
  6. 255
  8. /
  9. 1.0
  10. )

color
:
2. 1. var(
  2. --foo
  3. )

2. 1. rgba(
  2. 255
  4. 255
  6. 255
  8. /
  9. 1.0
  10. )

--rg
:
2. 255
3. ,
4. 255

--b
:
2. ,
3. 255

color
:
1. rgb(
2. 1. var(
  2. --rg
  3. )
3. 1. var(
  2. --b
  3. )
4. )

1. rgb(
2. 2. 255
  3. ,
  4. 255
  5. ,
  6. 255
3. )

CSS "Booleans"


            :root {
              --condition: 0; /* or 1 */
            }

            .box {
              /* This would be 100px */
              width: calc( 1 * 100px );

              /* This would be 0px */
              width: calc( 0 * 100px );

              /* This would be either 0px or 100px */
              width: calc( var(--condition, 0) * 100px );
            }


            if (myCondition) {
              el.style.setProperty('--condition', '1');
            } else {
              el.style.setProperty('--condition', '0');
            }

Boolean toggle in action


            .notification {
              --unread: 0;

              /* Badge only visible when --unread is > 0 */
              &::after {
                counter-reset: variable var(--unread);
                content: counter(variable);
                width: calc(min(var(--unread), 1) * 22px);
                height: calc(min(var(--unread), 1) * 22px);
                background: deepskyblue;
                border-radius: 100%;
                overflow: hidden;
              }
            }

--unread: 0
Inbox

--unread: 1
Inbox

--unread: 4
Inbox

Fallback Chaining


            .card {
              /* How it works */
              --fallbacks: var(--the-thing, the-fallback);

              /* Check multiple variables, use first valid one */
              background: var(--card-bg,
                          var(--surface-bg,
                          var(--default-bg, white)));

              /* Component → Theme → System → Hardcoded */
              color: var(--card-text,
                     var(--theme-text,
                     var(--system-text, black)));
            }

The "Space Toggle" Hack


            button {
              --OFF: ;        /* Just a space - valid token! */
              --ON: initial; /* "initial" = forces fallback */
              --is-raised: var(--OFF);
              border: 1px solid var(--is-raised, rgb(0 0 0 / .1));
              background: var(--is-raised,
                /*         ON value                :  OFF value */
                linear-gradient(hsl(0 0% 100% / .3), transparent));
              box-shadow: var(--is-raised,
                /*         ON value            :  OFF value     */
                0 1px hsl(0 0% 100% / .8) inset, 0 .1em .1em -.1em rgb(0 0 0 / .2));
            }
            button:hover { --is-raised: var(--ON); }

Button

But we can also use our new found knowledge of tokens to abuse this fallback. This pattern is known as the the space toggle hack. Lea Verou has a great demonstration on her blog about this. So because variables can be any token, this means a space is a valid value. So here --OFF encodes a single space. --ON is the value `initial`. Initial is a special CSS wide keyword, and this will cause the value to be a guaranteed invalid value, meaning that when you try to use it, it'll fallback to the second. When prepended to a value, the space disappears and you get your value. But "initial" makes a variable invalid, triggering the fallback chain. This gives us true if/else conditional logic in pure CSS!

... it's kind of useless


            button {
              border: 1px solid transparent;
              background: hsl(200 100% 50%);
              box-shadow: 0 .1em .1em -.1em rgb(0 0 0 / .2);
            }
            button:hover {
              border-color: rgb(0 0 0 / .1);
              background: linear-gradient(hsl(0 0% 100% / .3)) hsl(200 100% 50%);
              box-shadow: 0 1px hsl(0 0% 100% / .8) inset;
            }

Button

Now that we know variables are powerful...

Let's abuse them for color math!


            <label style="--r: 102; --g: 51; --b: 153">Purple!</label>
            <label style="--r: 218; --g: 165; --b: 32">Yellow!</label>


            label { background-color: rgb(var(--r) var(--g) var(--b)) }

Purple! Yellow! Custom!


            label {
              --color: rgb(var(--r) var(--g) var(--b));
              background-color: var(--color);
              color: contrast-color(var(--color));
            }

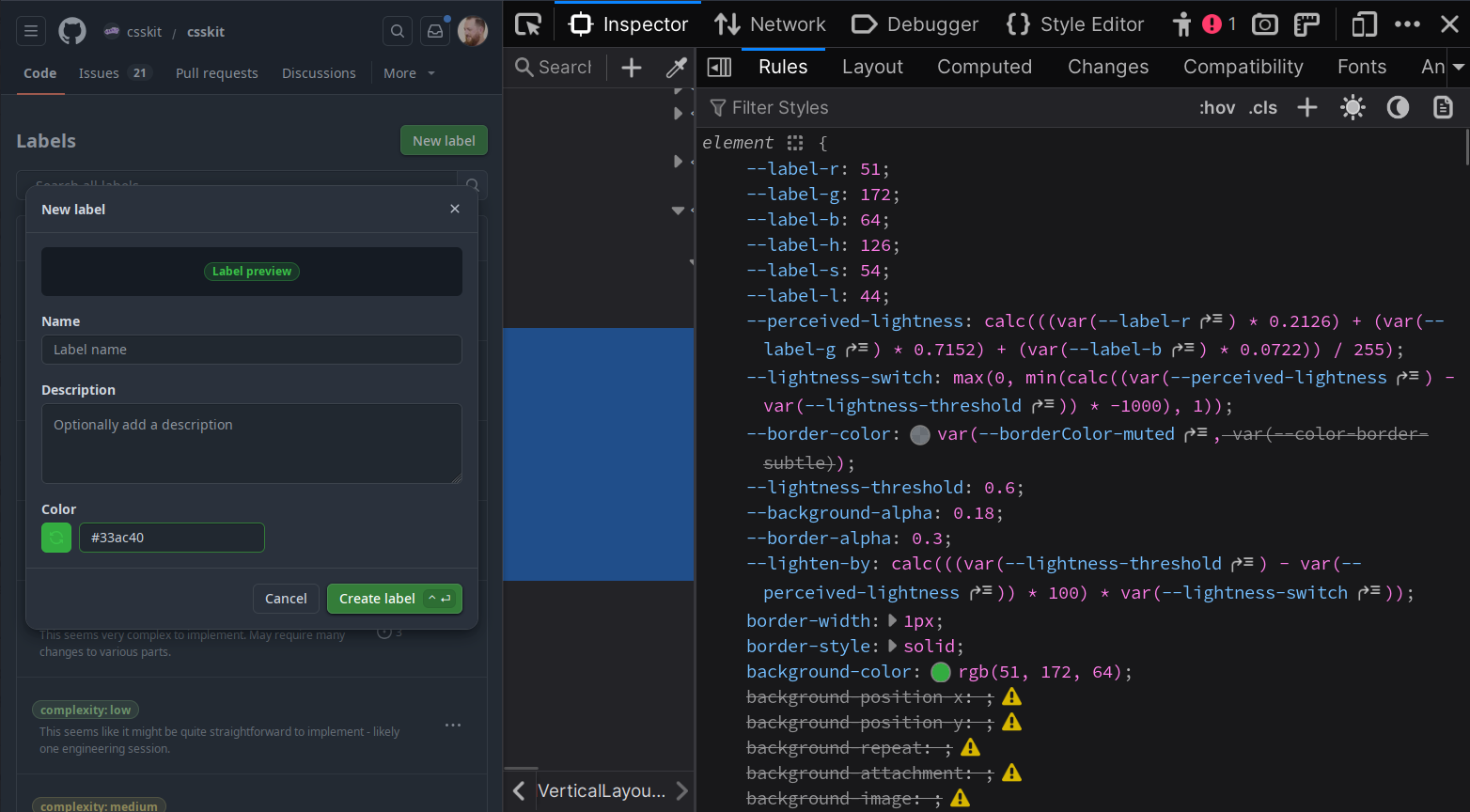

            label {
              /* Rec709 Luma coefficient */
              --luma: calc(
                (0.2126 * var(--r)) +
                (0.7152 * var(--g)) +
                (0.0722 * var(--b))
              );
              --threshold: 128;
              /* Convert threshold: either 0 (black) or 255 (white) */
              --x: calc(
                255 * (1 - clamp(0, calc((var(--luma) - var(--threshold)) / 1), 1))
              );
              background-color: rgb(var(--r) var(--g) var(--b));
              color: rgb(var(--x) var(--x) var(--x))
            }

Purple! Yellow! Custom!

❝But Keith that's stupid, I'm never going to use it❞

You, probably

Let's do more colo(u)r math(s)!

But this time with 100% less usefulness!


            /* Linearize sRGB to Linear-RGB */
            --rt: clamp(0, sign(calc(var(--rs) - 0.04045)), 1);
            --gt: clamp(0, sign(calc(var(--gs) - 0.04045)), 1);
            --bt: clamp(0, sign(calc(var(--bs) - 0.04045)), 1);
            --rl: calc(
              (1 - var(--rt)) * (var(--rs) / 12.92) +
              var(--rt) * pow(calc((var(--rs) + 0.055) / 1.055), 2.4)
            );
            --gl: calc(
              (1 - var(--gt)) * (var(--gs) / 12.92) +
              var(--gt) * pow(calc((var(--gs) + 0.055) / 1.055), 2.4)
            );
            --bl: calc(
              (1 - var(--bt)) * (var(--bs) / 12.92) +
              var(--bt) * pow(calc((var(--bs) + 0.055) / 1.055), 2.4)
            );


            /* Convert LinearRGB to a generic LMS (Long, Medium, Short) color space  */
            --l: calc(0.4122214708 * var(--rl) + 0.5363325363 * var(--gl) + 0.0514459929 * var(--bl));
            --m: calc(0.2119034982 * var(--rl) + 0.6806995451 * var(--gl) + 0.1073969566 * var(--bl));
            --s: calc(0.0883024619 * var(--rl) + 0.2817188376 * var(--gl) + 0.6299787005 * var(--bl));
            --lp: pow(var(--l), 0.3333333333333333);
            --mp: pow(var(--m), 0.3333333333333333);
            --sp: pow(var(--s), 0.3333333333333333);


            /* Convert LMS to Oklab (L, a, b) */
            --okl: calc(0.2104542553 * var(--lp) + 0.7936177850 * var(--mp) - 0.0040720468 * var(--sp));
            --oka: calc(1.9779984951 * var(--lp) - 2.4285922050 * var(--mp) + 0.4505937099 * var(--sp));
            --okb: calc(0.0259040371 * var(--lp) + 0.7827717662 * var(--mp) - 0.8086757660 * var(--sp));

            /* Oklab to Oklch: C = sqrt(a^2+b^2), h = atan2(b, a) */
            --okc: sqrt(calc(var(--oka) * var(--oka) + var(--okb) * var(--okb)));
            --okh: atan2(var(--okb), var(--oka));

            /* Final Oklch color declaration */
            --oklch: oklch(var(--okl) var(--okc) var(--okh));


            /* BOOLEAN: determine if the Luminance Value was light or not */
            --is-light: clamp(0, calc((var(--okl) - 0.5) * 1000), 1);
            --dir: calc(1 - 2 * var(--is-light));

            /* Calculate the alternate Lightness for Oklch */
            --okl-alt: clamp(0, calc(var(--okl) + var(--dir) * 0.55), 1);
            --oklch-alt: oklch(var(--okl-alt) var(--okc) var(--okh));


            /* Giant mound of CSS */
            label {
              background:var(--oklch);
              color:var(--oklch-alt)
            }

Hello 👋

My name is Keith Cirkel

And I am bad at CSS

👈

👆

👈

To be bad at CSS, you must first understand CSS.

You have to know where the bodies are buried.

You too, can be bad at CSS!

🚨 Parsing theory tangent! 🚨

Raw Text

Tokenization

Tokenization

AST "Component Values"

HIR (Higher-Order Intermediate Representation)

CSS Syntax 3

<ident-token>

CSS escaping rules means all of these parse the same

<number-token>

CSS escaping rules means all of these parse the same

👐🏻 Demo Time! 👐🏻

...becomes...

Demo page:

But, okay, let's ignore characters, focus on tokens

AST "Component Values"

CSS "Booleans"

Boolean toggle in action

Fallback Chaining

The "Space Toggle" Hack

... it's kind of useless

Now that we know variables are powerful...

Let's abuse them for color math!

Let's do more colo(u)r math(s)!

But this time with 100% less usefulness!

Thank you for listening

Questions welcome

Keith Cirkel

🦋 @keithamus.social

🐘 @keithamus.indieweb.social

🐙 github/keithamus

▶️ youtube/keithamus
